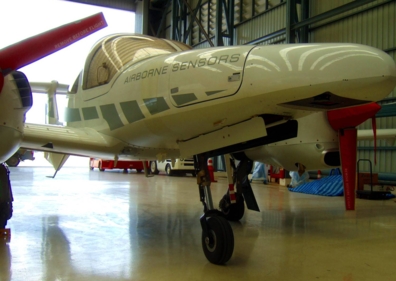

DA42MPP
Aircraft Diamond DA42MPP in Hangar
Experiences with Lidar canopy penetration in dense tropical forests:
AAS together with Dr. Martin Isenburg (rapidlasso GmbH) have shown that it is possible to penetrate the dense 45 meter canopy of tropical rainforests with a RIEGL LMS Q680i full waveform laser scanner operating 1200 meters above the ground at 80 kHz and get sufficiently many ground returns to construct a plausible DTM with a resolution of 2 meters.
Gallery
The lastest images from our gallery.
-
-

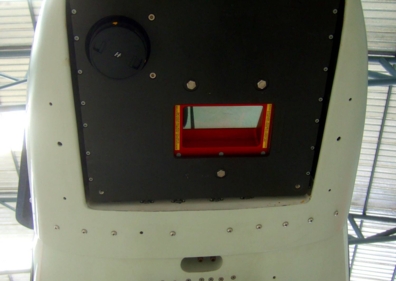

Sensors
Lidar Sensor Riegl Q680i and IGI 60Mpx Camera installed at Aircraft Nosepod
-

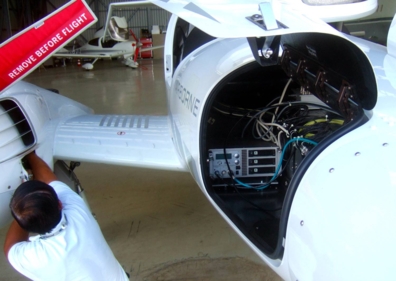

Lidar Storage
Lidar Storage in Aircraft front compartment
-

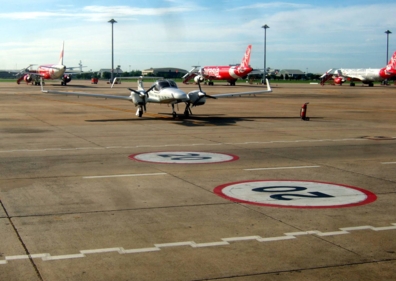

DA42MPP at Hangar
Aircraft getting prepared for Mission Flight
-

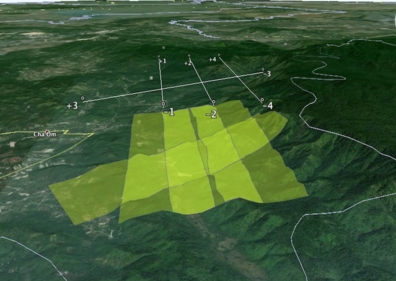

Flight Plan
Flight Plan to cover some sections of khao Yai's Forrest Area
-

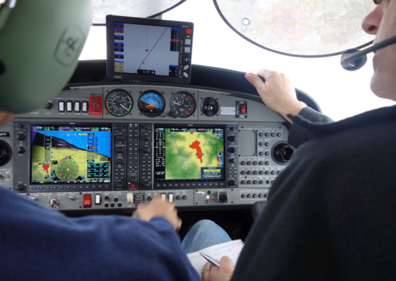

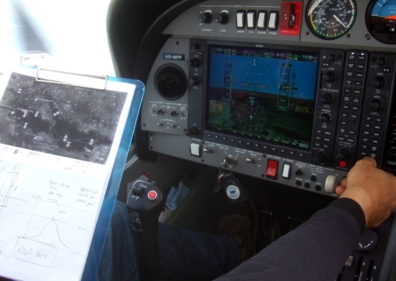

Cockpit View
Setting the Flight Path to Mission Area into Auto Pilot System
-
Cockpit View
DA42MPP with Garmin 1000 and Flight Management Panel CCNS5
-

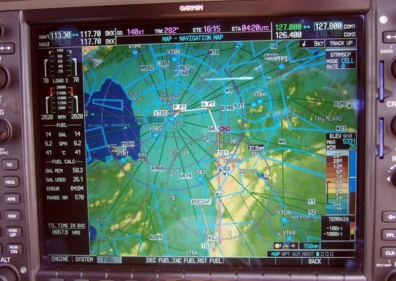

Garmin1000
View of Flight Routes
-
Mission Flight
Approaching Mission Area
-

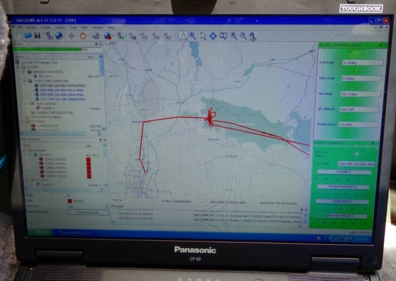

Monitoring
Monitoring the Flight Strips
-
Touch Down
Landing in Don Muang after Mission completed
-

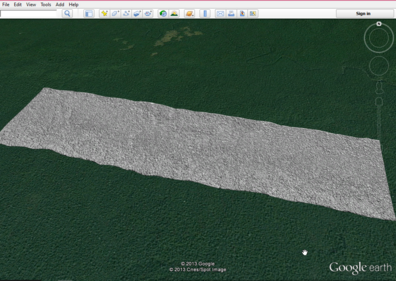

DSM
Digital Surface Model of a Jungle Strip
-

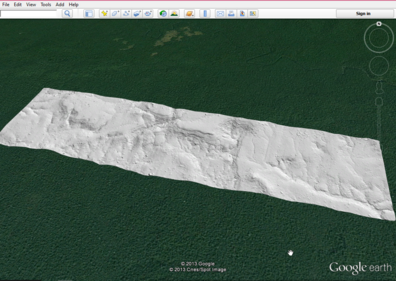

DTM
Digital Terrain Model of a Jungle Strip
-

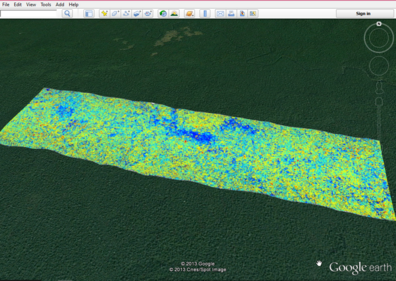

CHM
Canopy Height Model to view relative Height of trees
-

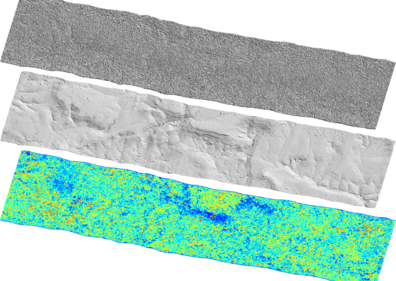

DEM
DSM,DTM and CHM of a Jungle Strip
-
Image Khao Yai
Image of Khao Yai Jungle
-

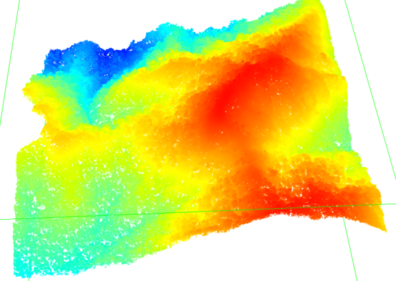

LAS Cloud Coloured by Elevation
Classified LAS Cloud colored by Elevation
-

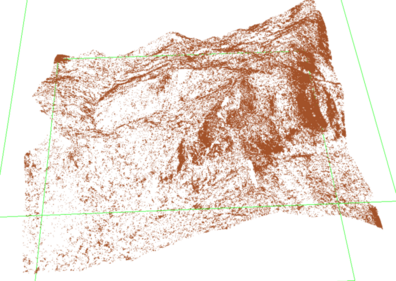

LAS Cloud Ground
Classified LAS cloud filtered by Ground only
-
Hill shaded DTM
Hill shaded DTM
